Everything you need to know about specifications and performance - Chevrolet Equinox 2016 - 3.6 V6 (305 Hp) Automatic

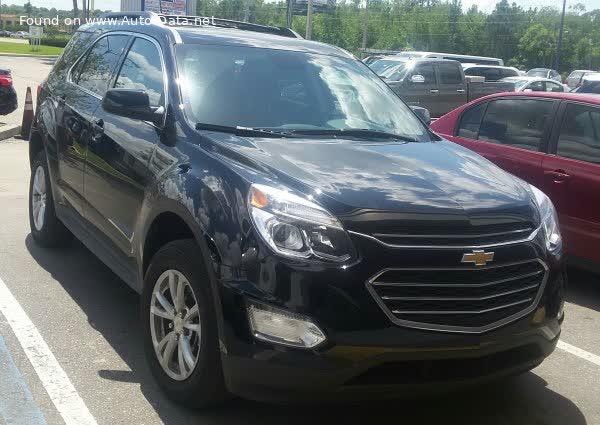

Full specifications and technical details 2016 Chevrolet Equinox II (facelift 2016) 3.6 V6 (305 Hp) Automatic

Overview:

What is the engine capacity of a Chevrolet Equinox 2016?
The engine capacity of the Chevrolet Equinox 2016 is 3564.

Chevrolet Equinox 2016 How many horsepower?
The engine power of the Chevrolet Equinox 2016 is 305 Hp @ 6500 rpm..

What is the Chevrolet Equinox 2016 engine?
Chevrolet Equinox 2016 engine is LFX. (Click to see other cars using the same engine)

What is the recommended oil for a Chevrolet Equinox 2016 engine?
The recommended oil for a Chevrolet Equinox 2016 car engine is 5W-30.

What type of camshaft transmission system is used in a Chevrolet Equinox 2016 engine?
chain is used to transmit motion.

General:

Brand: Chevrolet

Model: Equinox

Generation: II (facelift 2016)

Modification (Engine): 3.6 V6 (305 Hp) Automatic

Start of production: 2016

End of production: 2017

Powertrain Architecture: Internal Combustion Engine

Body type:Sports Utility Vehicle (SUV)

Seats: 5

Doors: 5

Engine:

Power: 305 hp @ 6500 rpm.

Power per litre: 85.6 hp/l

Torque: 369 nm @ 4800 rpm.

Engine Model/Code:LFX

Engine displacement: 3564

Number of cylinders: 6

Engine configuration: V-engine

Number of valves per cylinder: 4

Fuel injection system: Direct injection

Engine aspiration: Naturally aspirated Engine

Valvetrain: DOHC-CVVT

Engine oil capacity: 5.7 l

Coolant: 10.2 l

Engine layout: Front, Longitudinal

Cylinder Bore: 94 mm

Piston Stroke: 85.6 mm

Compression ratio: 11.5:1

recommended engine oil: 5W-30

euro standards: EURO 5

engine lifespan (km): ~300 000

weight (kg): 175

timing drive: chain

Show more details about this engine

Performance:

Fuel Type: Petrol (Gasoline)

Fuel consumption (economy) - urban: 13.8 l/100 km

Fuel consumption (economy) - extra urban: 9.8 l/100 km

Weight-to-power ratio: 6.1 kg/Hp, 163.5 Hp/tonne

Weight-to-torque ratio: 5.1 kg/Nm, 197.9 Nm/tonne

Space:

Kerb Weight (kg): 1865

Trunk (boot) space - maximum: 1804 l

Trunk (boot) space - minimum: 892 l

Permitted trailer load with brakes (12%): 1588 kg

Fuel tank capacity: 71 l

dimensions:

Length: 4770 mm

Width: 1841 mm

Height: 1684 mm

wheelbase: 2857 mm

Front track: 1598 mm

Rear (Back) track: 1577 mm

Minimum turning circle (turning diameter): 12.2 m

Powertrain, Suspension and Brakes:

Drivetrain Architecture: The Internal combustion Engine (ICE) drives the front wheels of the vehicle.

Drive wheel: Front wheel drive

Number of gears and type of gearbox: 6 gears, automatic transmission Hydra-Matic

Front brakes: Ventilated discs

Rear brakes: Ventilated discs

Assisting systems: ABS (Anti-lock braking system)

Steering type: Steering rack and pinion

Power steering: Hydraulic Steering

Tires size: 225/65 R17; 235/55 R18

Wheel rims size: 17; 18

Front suspension: Independent, type McPherson with coil Spring and anti-roll bar

Rear suspension: Independent multi-link Spring suspension with stabilizer
